TCF series

Poreba lathe
,

TCF series

  • Send a request
Download the specification card
Availability: to order

Main product features:

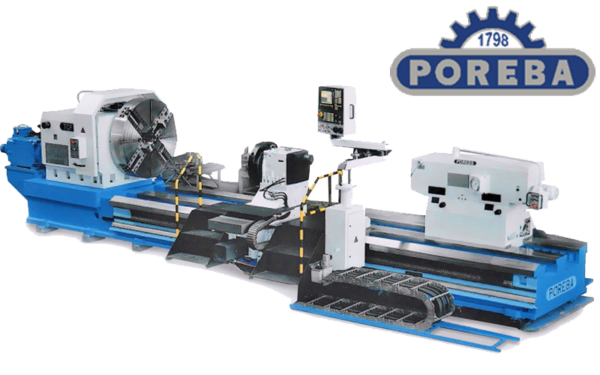

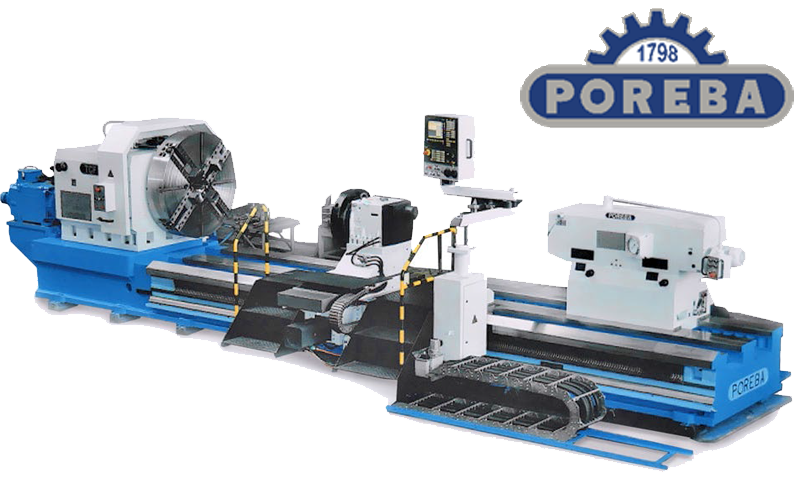

  • For machining large-sized shafts and large-diameter workpieces.
  • 3-bearing bed, headstock body - cast in cast iron with improved strength properties.
  • Bed and support guides hardened to a hardness of min. 45 HRC and ground.
  • The longitudinal slide slides on two or three guides for precise guidance.
  • The possibility of using a wide range of optional equipment, increasing the capabilities and efficiency of the machine tool.
  • Sliding operator cab with control panel.
Categories: , Tag:

Standard equipment

  • SIEMENS SINUMERIK 840 D sl Operate numerical control system with basic turning functions and main drive power of 71 kW (continuous operation)
  • diameter of the passage over the bed: ? 1600-3000 mm (depends on the model)
  • turning length: 3 ÷ 25 m, in 1 m increments
  • 4-jaw lathe chuck: ? 1600 mm
  • slide supported on two slides
  • main drive power: 71 kW (continuous operation)
  • spindle speed: 0.5 ÷ 250 rpm
  • power supply: 3 × 400 V / 50 Hz
  • automatic 4-position tool head
  • Z-axis travel realized from a backlash-free gearbox
  • movement of the transverse slide in the X-axis realized by a ball screw
  • automatic change of the headstock rotational speed range
  • central lubrication system controlled by CNC
  • chip conveyor
  • cooling system 1.0 Bar
  • Tailstock with quill ? 280 mm with rotating spindle, pressure indicator, workpiece elongation compensation, with automatic quill extension and sliding on the bed

Optional equipment

  • A1-20 tip spindle
  • increase in spindle speed
  • third guide for slide support
  • auxiliary slide
  • SIEMENS SINUMERIK 840 D sl Operate numerical control system
  • Tailstock with quill ? 280 mm with rotating spindle, pressure indicator, workpiece elongation compensation, with automatic quill extension, bed travel, quill clamp, bed clamp
  • supports

Technical data

Expand all

Model TCF 160 | 200 | 224 | 250 | 275 | 300
The diameter of the flight over the bed mm 1600 | 2000 | 2250 | 2500 | 2750 | 3000
Turning diameter over carriage mm 1300 | 1600 | 1800 | 2200 | 2450 | 2700
Tusk spacing (every 1m) mm 3000 ÷ 25000

RPM range (stepless adjustment) rpm 0,5 ÷ 250 / 0,6 ÷ 315*
Main engine power kW 71 / 100 *
Max. spindle torque Nm 40000 / 50000 *
Spindle taper 1:10 / A1:20*

Suport quantity 2 (option 3)
Transverse shift mm Max turning length
Transverse shift mm 650
Rapid traverse in the X/Z axis mm/min 6000 / 4000

Quill diameter mm ? 280 / ? 450 *
Quill extension mm 200

Length mm 3550 + turning length
Width mm 2600
Height mm 2300
