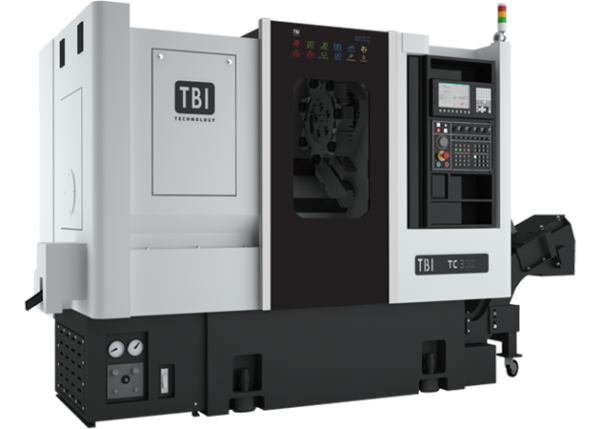

TBI TC 300 Compact SMC

Send a request

Download the specification card

Main product features:

45-degree slanted bed. made as monolithic cast iron
high structural rigidity
linear rolling guides in all axes
max. spindle speed 6000 rpm
central lubrication system
precision reciprocating ball screws
high-speed feeds in X/Z axes 30 m/min
LED panel for tracking machining processes
tiltable desktop

Categories: Lathes, Slant bed lathes - TC 300 series Tags: counter-spindle, driven tools, lathe, lathes, slant-bed lathes, TBI TC 300 Compact, TC 300 Compact MC, TC 300 series, TC lathe

Standard equipment

Fanuc Mate 0iTD 8.4" control including Manual Guide 0i
quick-change hydraulic turret VDI 30 - servo drive
turret with live tools
3-jaw hydraulic turning chuck 169 mm
maximum rod diameter in the spindle 42 mm
maximum rod diameter in the sub-spindle 32 mm
tool cooling system
sub-spindle
interface to bar feeder
part catcher
part conveyor
chain-type chip conveyor with chip cart

Optional equipment

Fanuc 0iTD 10.4" control with Manual Guide I
increase the power of the main spindle to 11/15 kW
3-jaw hydraulic lathe chuck 203 mm
C axis of the spindle
C axis of the counter-spindle
increase the diameter of the rod in the spindle to 60 mm
oil skimmer
rod feeder
tool measuring probe

Technical data

Expand all

Max. diameter of the material above the bed	mm	400
Max. turning diameter	mm	380
Max. turning diameter (with workpiece catch)	mm	200
Max. turning length (without handle)	mm	300
X/Z-axis travel	mm	200/300
Travel speed of the X, Z axes	m/min	30

Spindle passage		43 (option 65)
Max. bar diameter in spindle		42 (option 60)
Spindle face		ASA A2-5 / A2-6
Main drive		AC motor
Drive power	kW	7,5/11
Max. rotations	rpm	6000
Size of lathe chuck	mm	169 (option 203)

Execution		Servo + driven tools
Number of tools	pcs.	12
Tool socket		VDI 30
Max. tool dimension	mm	20 x 20

Max. bar diameter	mm	30
Size of lathe chuck	mm	102

Length (with chip conveyor)	mm	2600 (3200)
Width	mm	1300
Height	mm	1860
Weight	kg	4700
