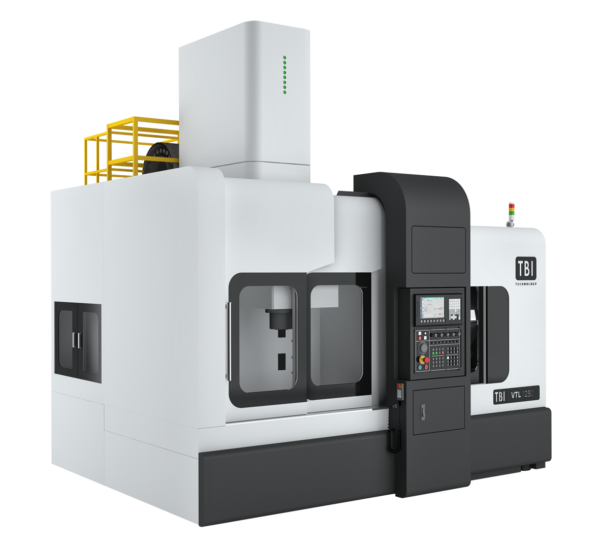

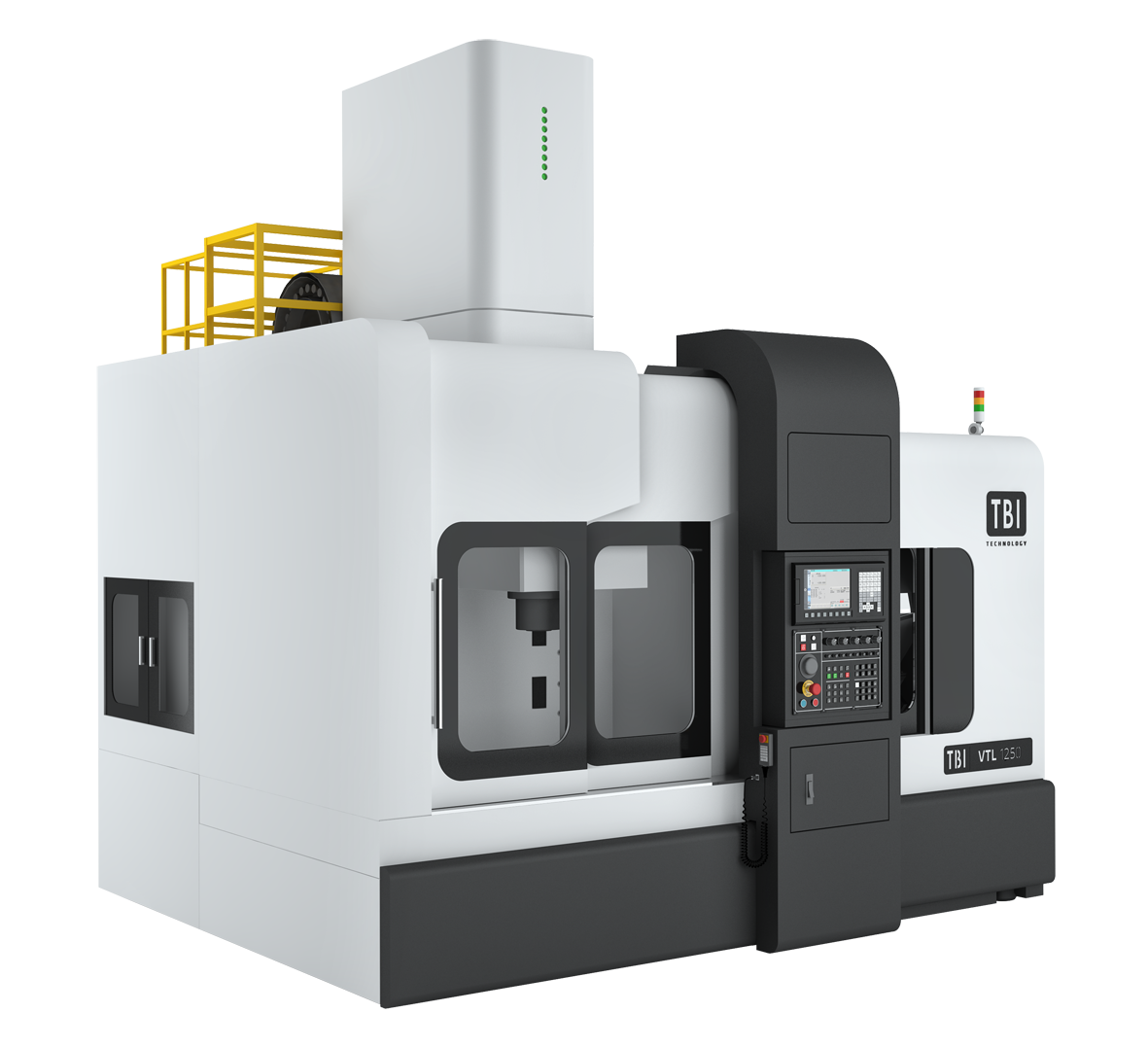

TBI VTL 2000

VTL 1250 series TBI rotary lathe - TBITECH.PL

Lathes, Vertical lathes - VTL series

TBI VTL 2000

Send a request

Download the specification card

Main product features:

massive machine tool bed made as monolithic cast iron
possibility to use live tools with C axis
spindle gearbox as standard
central lubrication system
full coverage of the workspace

Categories: Lathes, Vertical lathes - VTL series Tags: driven tools, lathe, rotary lathe, VTL series

Standard equipment

Fanuc controller
4-jaw chuck
ZF automatic gearbox
automatic tool changer (ATC)
chain-type chip conveyor with chip cart
tool cooling system
oil skimmer

Optional equipment

live tools with C axis
Heidenhain linear scales
cooling through the spindle (CTS)
increase in table drive power
coolant filtration system
increase in Z-axis travel
tool probe
oil skimmer

Technical data

Expand all

Table diameter	mm	2000
Max. turning diameter	mm	2400
Max. turning height	mm	1500
Max. workpiece weight	kg	20000
Max. table torque	Nm	24600
Max. cutting force	N	26500
Slide	mm	230 x 230

X-axis travel	mm	1835
Z-axis travel	mm	1000
Table rotation range	rpm	1-73, 1-200
High-speed feed in the X/Z axis	m/min	12000 / 10000
Slide of the support beam	mm	800

Number of tools	pcs.	12 (18)
Max. tool length	mm	450

Number of tools (turning/milling)	pcs.	18 (9/9)
Max. tool length	mm	450
Max. drill/tap diameter	mm	50,8/30
Power of live tools	kW	11/15
Cross-section of the holder	mm	32×32
Tool sockets	type	SK50
Inner cone of the claw bushing	type	MT-6
Claw sleeve travel	mm	150

Length	mm	6300
Width	mm	4300
Height	mm	5720
Weight	kg	38200
