Hexagon IRP 40.02 detail probe

Sonda HH

Milling machines, Touch probes

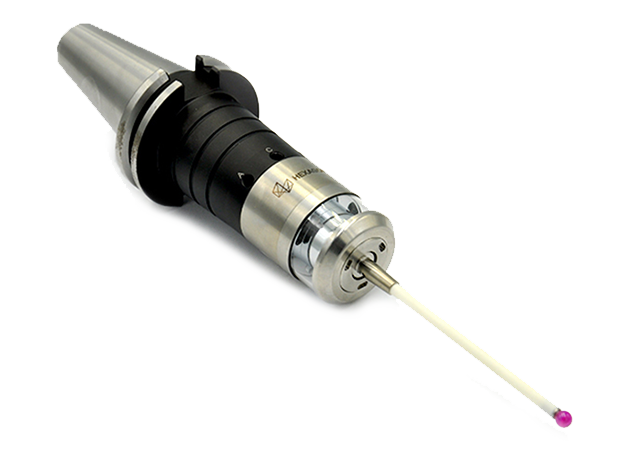

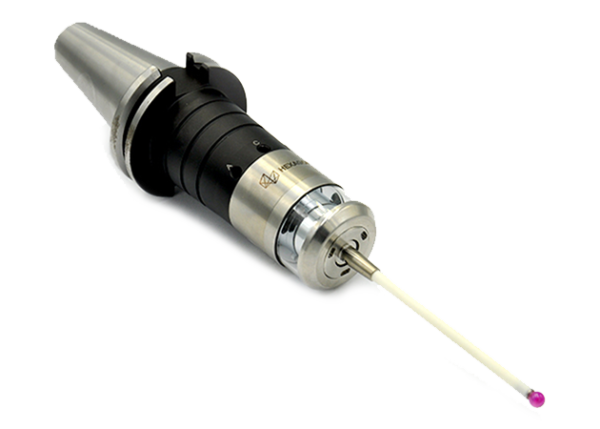

Hexagon IRP 40.02 detail probe

Send a request

Download the specification card

Availability: to order

Main product features:

Touch probe to measure the workpiece.
The IRP40.02 infrared system meets all the requirements for measurement on the machine tool.
Thanks to its extremely compact and robust design, the IRP40.02 touch probe needs very little space on the machine and can also be used for applications in very confined spaces.
The IRP40.02 shows its true strength in the combination of process reliability and an optimized measurement strategy.

Categories: Milling machines, Touch probes Tags: Hexagon probe, probe, tool probe

Standard equipment

rugged construction,
optical transmission,
designed for small and medium-sized milling machines,
infrared data transmission (up to 6 m),
IP68 waterproofing,
Intelligent Trigger Evaluation (ITE) technology supports the shortest cycle times without sacrificing process reliability,
fast and precise probing as a result of the "one-touch" strategy allows the highest degree of precision.

Optional equipment

Each set of probes purchased from TBI comes fully equipped and includes:
tool probe 35.20-TS-PT,
IRP 40.02 workpiece probe,
M&H SK40 DIN69871 taper,
L=2M/6.5 cable,
L=10M/32 cable,
18mm T-NUT nut,
M4 mandrel for probe L=103, D=6; 91.00-T103/06-KE-M4,
receiver mounting bracket,
receiver 91.42.

Technical data

Expand all

Looking for measurement probes or necessary accessories?

Do you need help from an advisor?

Call us Monday to Friday between 8am and 4pm and we will give you comprehensive telephone advice. Outside our advisers' working hours we suggest you send us an email or contact us via the contact form. contact form.
