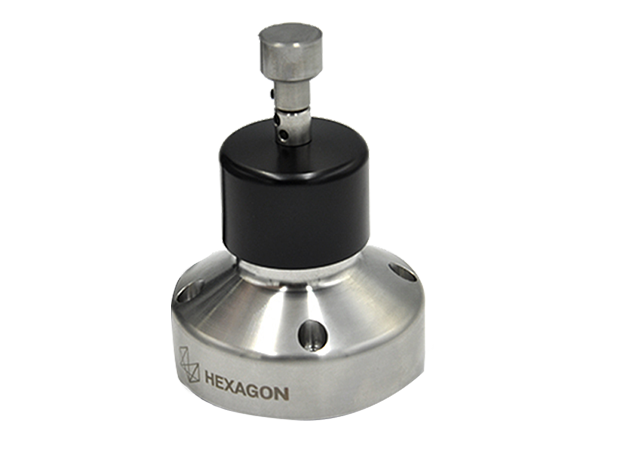

Hexagon TS 35.20 tool probe

Sonda Hexagon

Milling machines, Touch probes

Hexagon TS 35.20 tool probe

Send a request

Download the specification card

Availability: to order

Main product features:

Contact probe TS 35.20 for tool setting and broken tool detection
For measuring tools and detecting broken tools on vertical machining centers.
The precise measuring mechanism reliably measures the length and radius of the tool.
The measurement can be both static and dynamic.
All tasks can be performed in the shortest possible time using measurement cycles.

Categories: Milling machines, Touch probes Tags: Hexagon probe, probe, tool probe

Standard equipment

proven kinematic design,
minimum tool size for detection ? 0.5 mm
designed for small and medium-sized milling machines
Interference-resistant wired communications,
IP68 waterproofing,
Mechanical fuse - protection against damage during a collision,
1.00 ?m 2? repeatability.

Optional equipment

Each set of probes purchased from TBI comes fully equipped and includes:
tool probe 35.20-TS-PT,
IRP 40.02 workpiece probe,
M&H SK40 DIN69871 taper,
L=2M/6.5 cable,
L=10M/32 cable,
18mm T-NUT nut,
M4 mandrel for probe L=103, D=6; 91.00-T103/06-KE-M4,
receiver mounting bracket,
receiver 91.42.

Technical data
